Single Port, Ethernet Transformer Modules

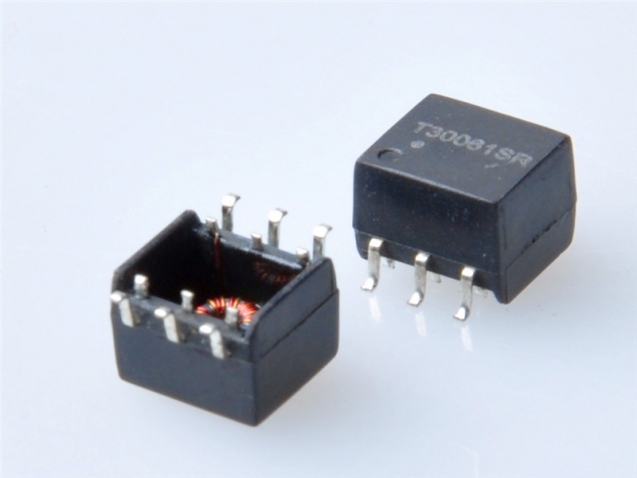

Model： T30061SR
Series： LAN Transformer Series
Download PDF
- Specification
- Drawing sheet
-
Single Port, 1000 BASE-T Ethernet Transformer Modules & PoE, SMD，Rohs HULYN Part Number TGE-2419SR Pulse Part Number H5062NL Speed 1000BASE-T Number of Ports SINGLE Application - LAN ETHERNET (PoE) Package SMD Temperature 0 TO 70 AutomDX YES Comment SAME AS NL VERSION Configuration RX T,C,S Configuration TX T,C,S Construction OPEN FRAME Cores Per Port 12 Package Height (Inches) 0.260 Package Height (mm) 6.60 Package Length (Inches) 0.697 Package Length (mm) 17.70 Package Width (Inches) 0.650 Package Width (mm) 16.51 Turns Ratio RX 1CT:1CT
